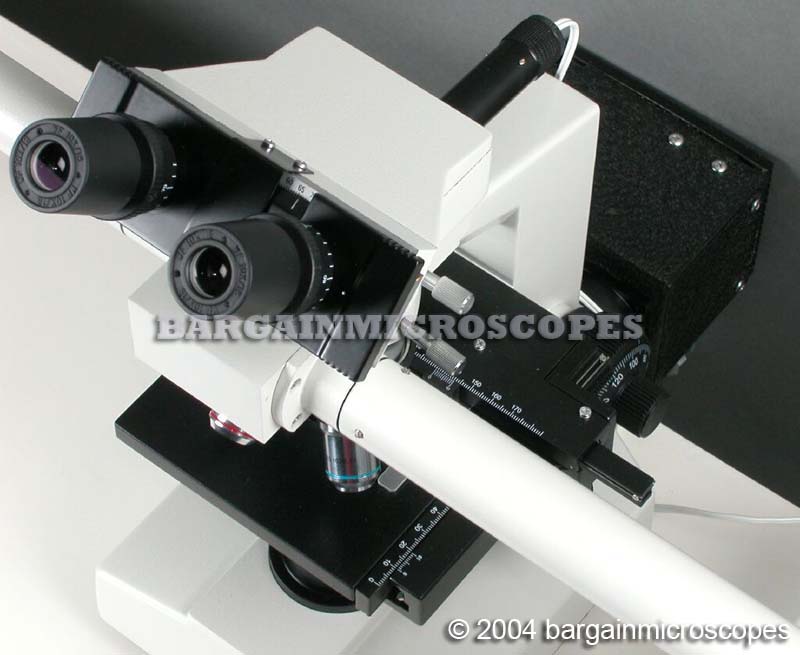

- LED Pointer arrow with variable intensity light, superimposed on viewing field of all stations.

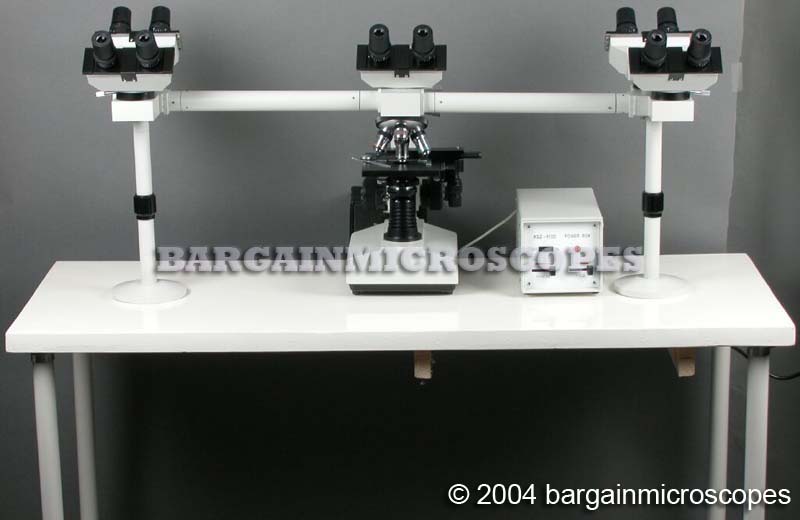

- Pointer arrow points to the same location on all five microscope heads.
- Pointer arrow can be moved out of the viewing field as desired.
|
| USB Camera Specifications |

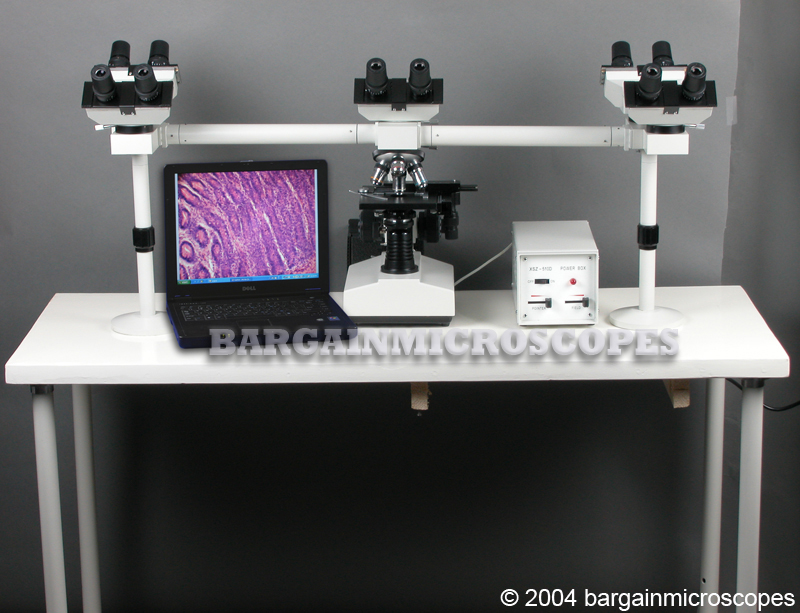

- High Resolution 3.1 MegaPixel Digital Camera System.
- Complete Digital Microscopy Solution Included.

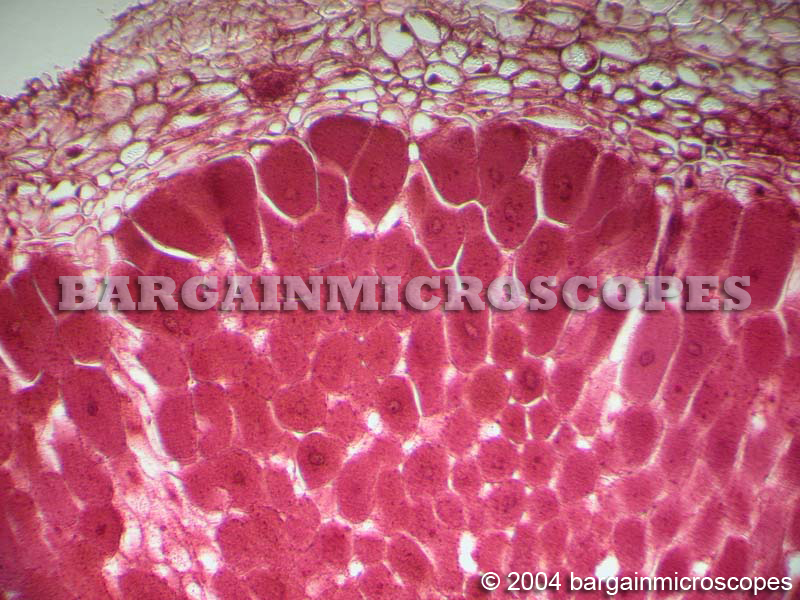

- Capture high resolution digital microscope images, 2048×1536 pixels.
- View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
- Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
- Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
- Includes measuring capability with the software.
|
| Eyepieces and Magnification |
- Four Magnifications: 40x, 100x, 400x, and 1000x.
- Eyepiece Set Included: Wide Field 10x.
- Four DIN Achromatic Objectives: 4x, 10x, 40x, 100x (Oil Immersion).
- Spring Loaded 40x and 100x Objectives to Protect Slides.
|

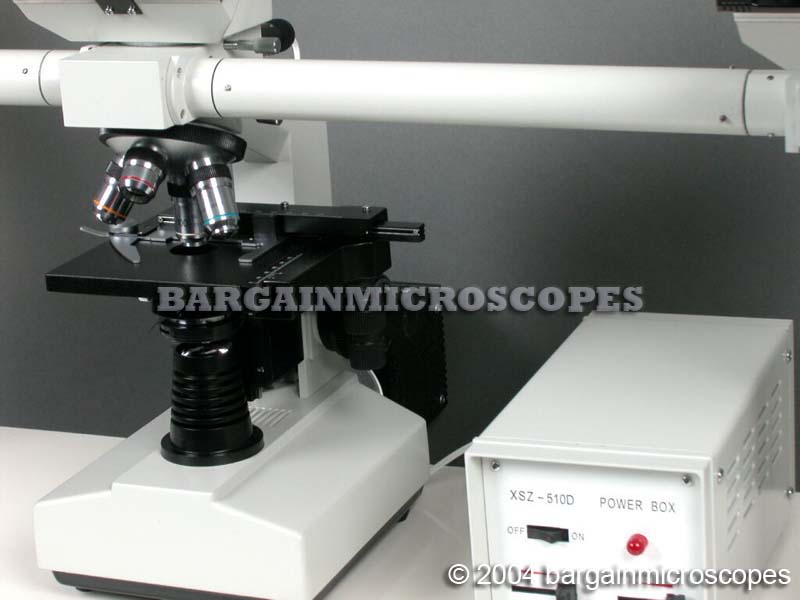

- High Power 100W Halogen Variable Intensity Transmitted Light in External Housing.

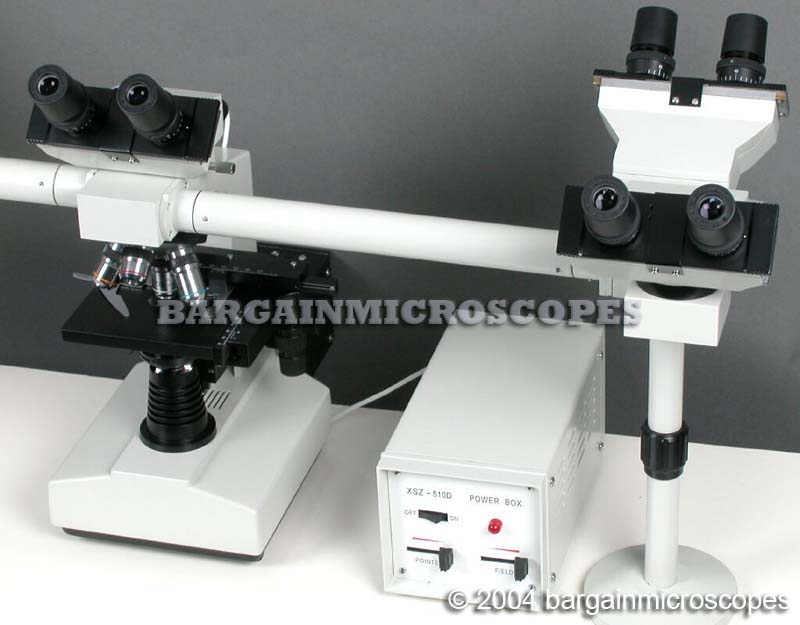

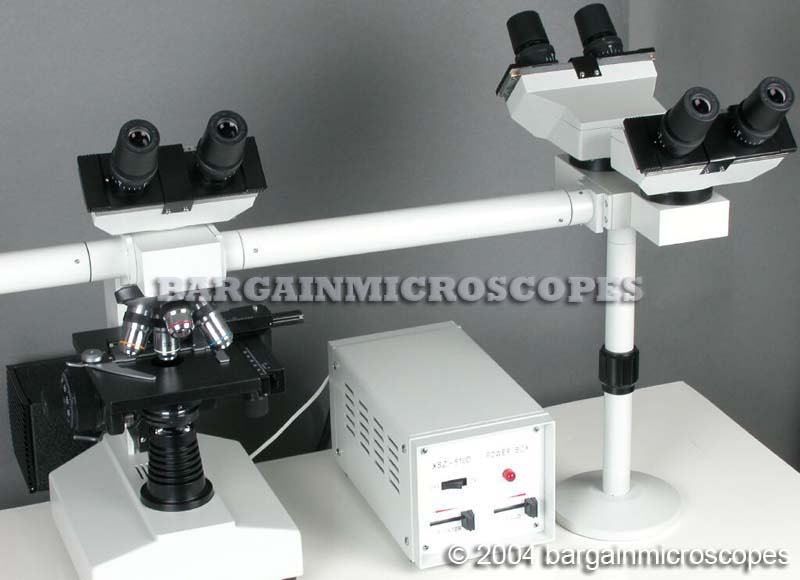

- External Power Supply for Base Lighting and Light for LED Pointer Arrow.
|
| Head – Interpupillary Distance – Diopter |

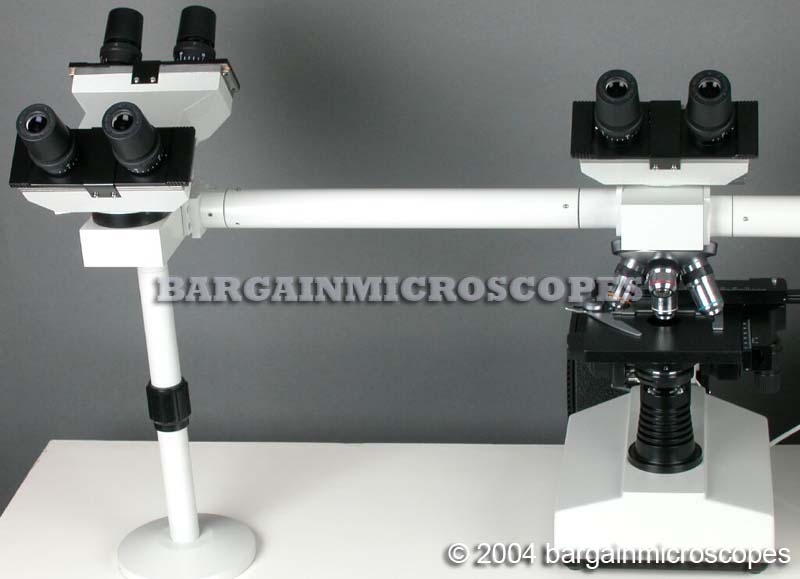

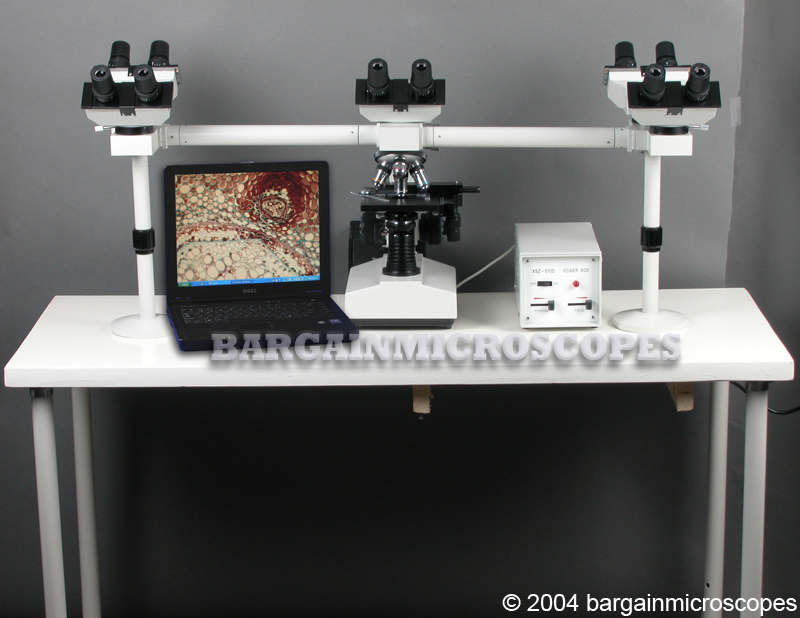

- Trinocular Head (Photo/Video Port) on Teacher’s Station Plus Four Binocular Student Heads
- 45 Degree Inclined Heads, Rotatable.
- Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
- Diopter Adjustment on Both Oculars of all Scopes. Use for Adjusting the Focus on Training Stations.
|
| Condenser – Iris – Filters |
- 1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
- Filters Included: Blue and Green.
|
- Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
- Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
- Tension Adjustable Coarse Focusing.
|
- Includes: Two Extra 24V100W Bulbs, Two Fuses, Bottle of Immersion Oil, and Dust Cover.
|
- Ships in Molded Styrofoam Container for protection.
- Manufactured under ISO: 9001 Standards.
- 110 VAC Power Requirement (Contact us about 220V availability).
- High Quality Solid Construction!
- Precision Made Glass Optics!
- Brand New, Never Used!
|
- Warranty is 5 years on all microscope equipment.
- The microscope warranty covers problems arising from normal usage.
- We will repair or replace your defective microscopy equipment as needed during the warranty period.
|
