Boom-Dual

Boom Mounted - Dual Arm Microscopes

Call our Sales Hotline at

Price: $ 769.99
Model: bm0007b20m
Shipping/Handling/Insurance: $ 64.98

Multi-function USB computer connected camera with NTSC TV video output is included. Laptop/Monitor are not included.

Product Overview //

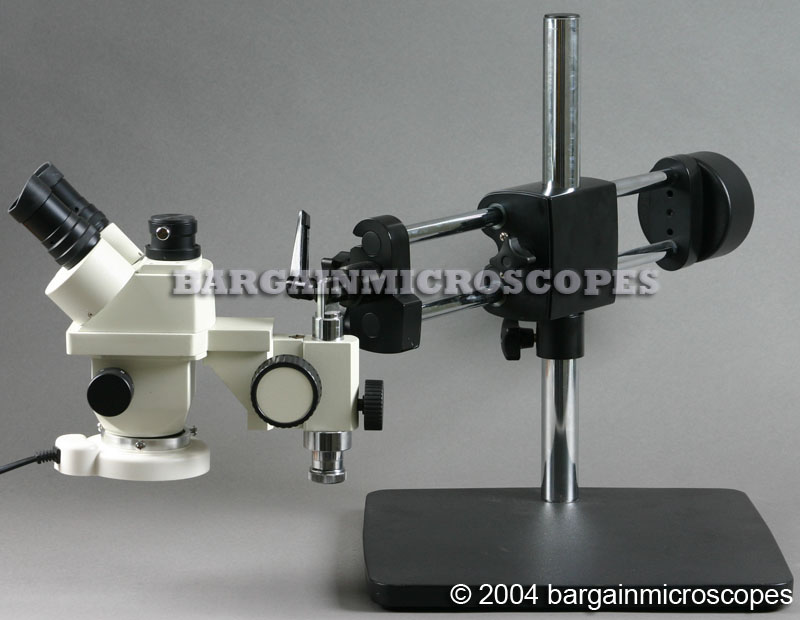

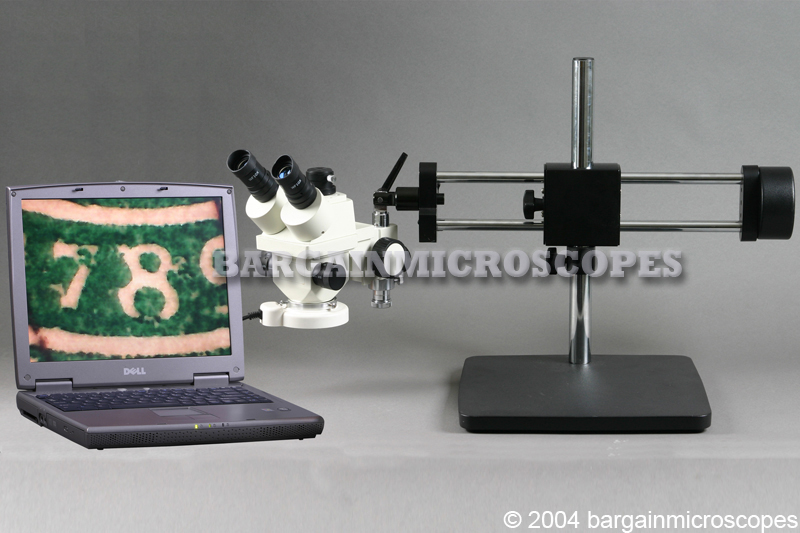

Heavy double arm microscope stand for sturdy mounting of stereoscopic microscope head.

Laptop NOT Included.

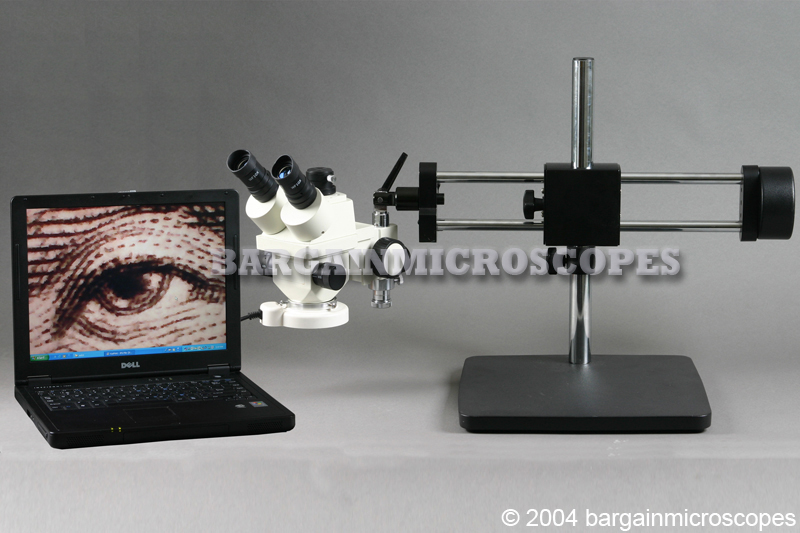

USB Camera – PC Connectivity.
USB Camera IS Included.
Connects Directly to Computer!

Monitor NOT INCLUDED.
CCD video camera is included.

Specimen photos taken with different type of camera held to eyepiece.

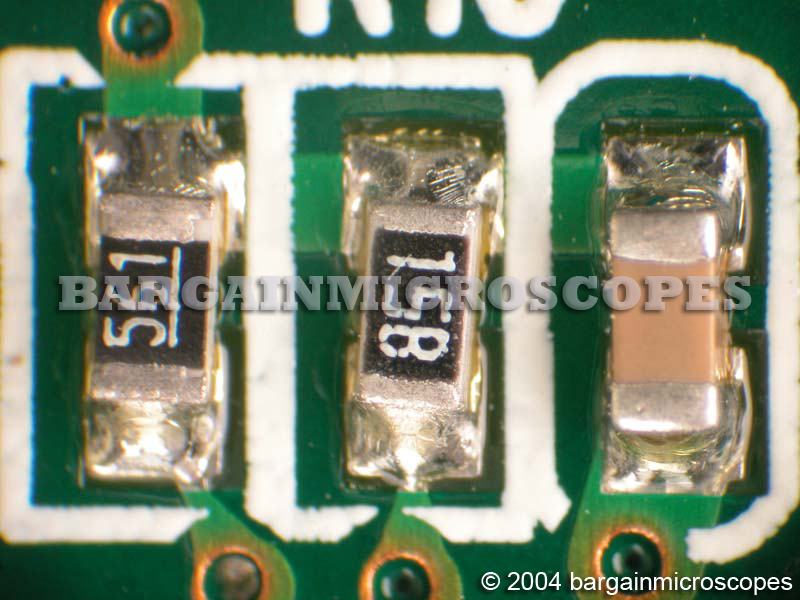

Circuit Board
Photo Through 10x Eyepiece
Taken Using Digital Camera

US Penny
Photo Through 10x Eyepiece
10x Total Magnification

US Stamp – Ship
Photo Taken Thru Trinocular Port
7.5x Magnification
Camera Zoom In.

Ring Stones
7.5x Magnification
Digital Camera at Full Zoom In!

Camera Equipment Included

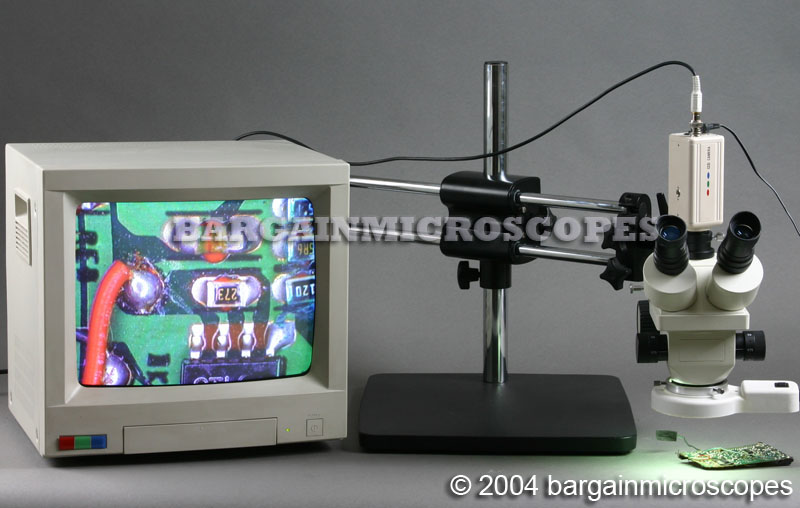

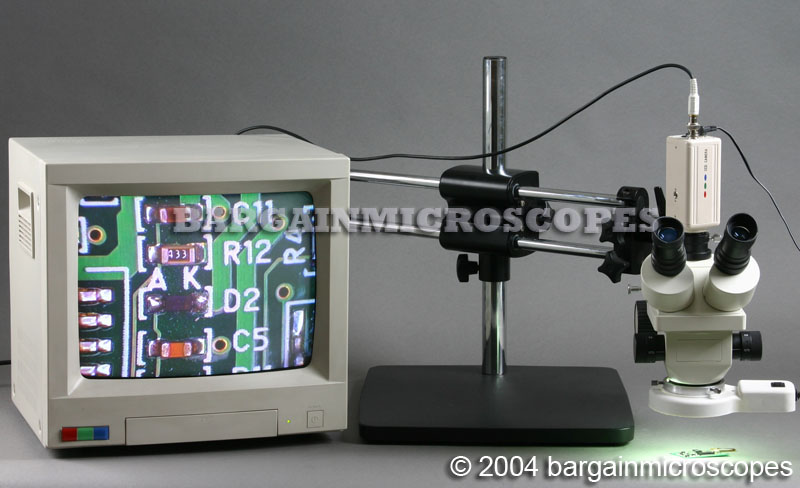

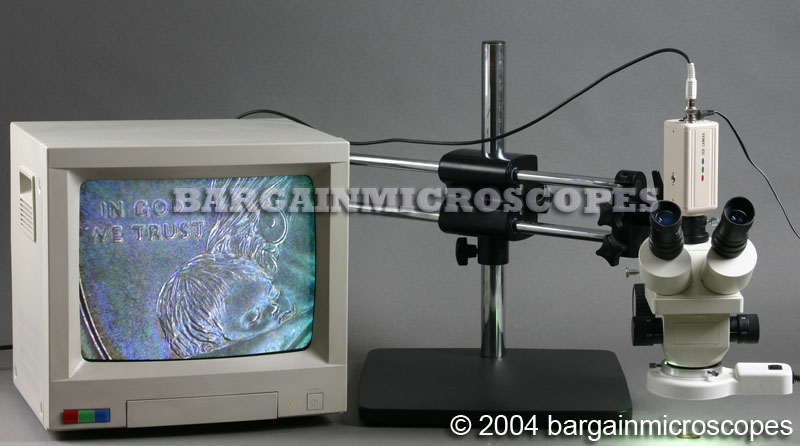

Dual Usage Camera Included! Connect to both CCTV Monitor/TV or Computer!
This is a unique two-in-one camera that allows both common microscope camera outputs. Normally, you need two separate cameras to get this functionality.
Capture 720×576 pixel digital still and digital video via the USB input on your laptop computer.
Output live video to a CCTV monitor or normal Television using the NTSC composite video-out giving 420 TV lines and 370K pixels. PAL format available upon request.
Microscope camera kit includes dual-usage camera, USB cable, Video cable with RCA jacks, autovolt power adapter, and Windows software.

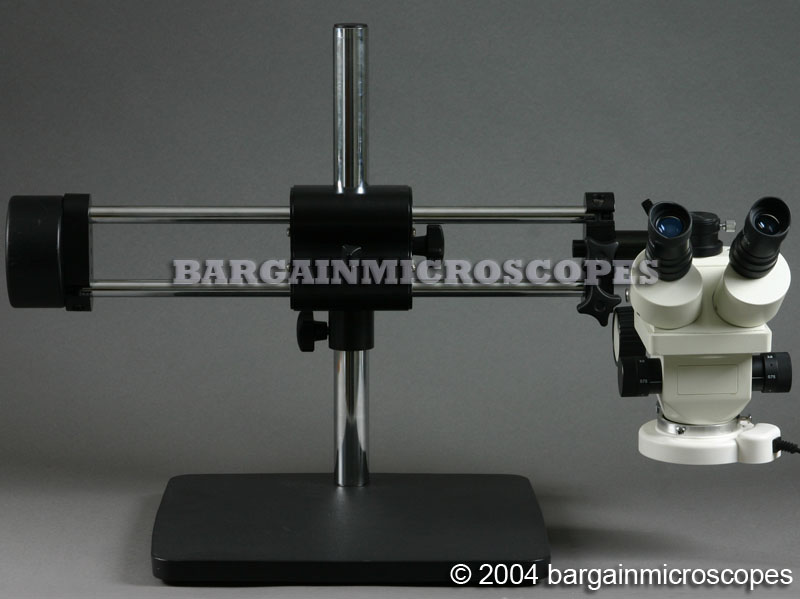

Boom Stand Specifications

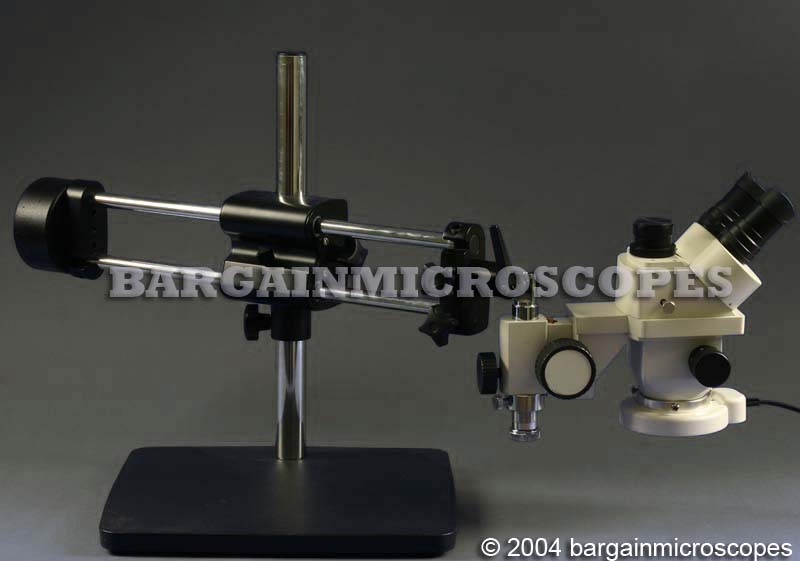

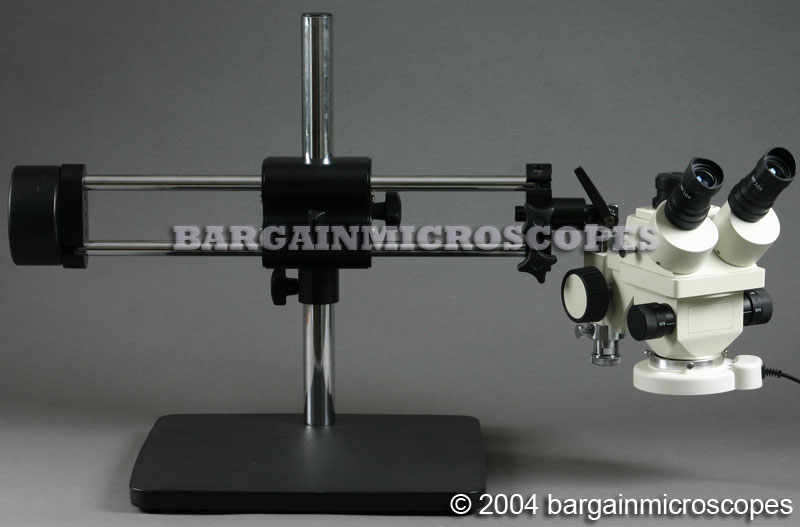

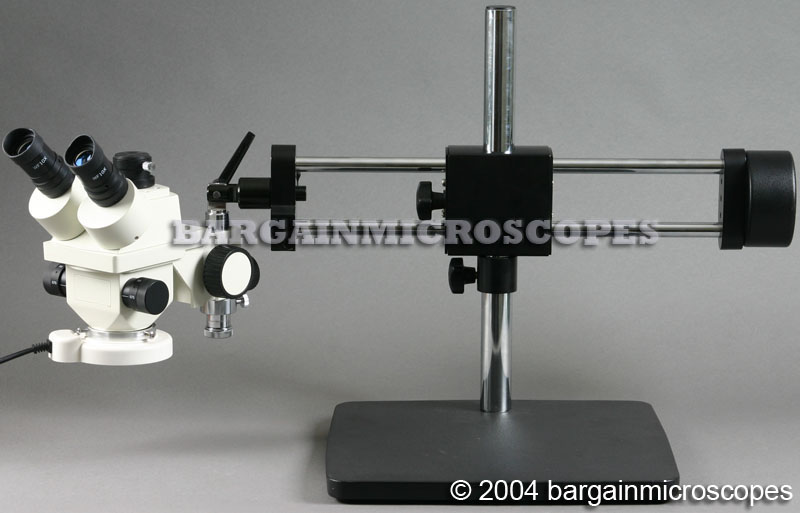

Extra Sturdy Boom Stand for Maximum Versatility and Working Area!

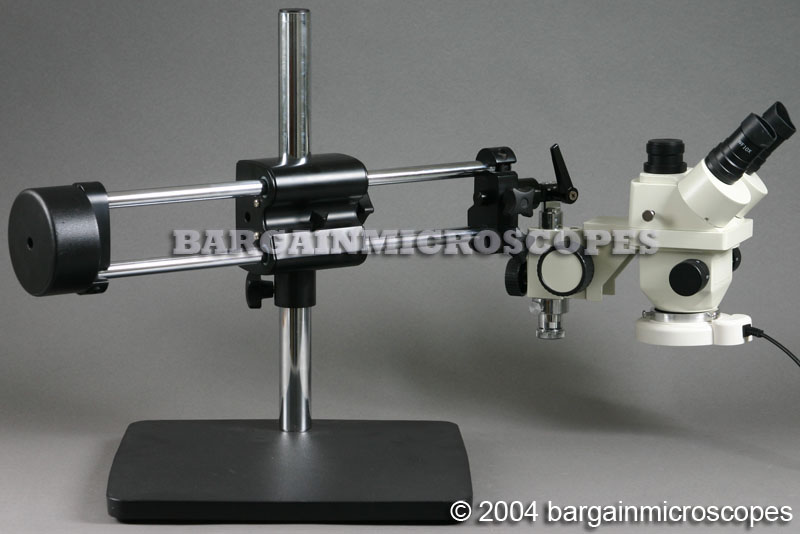

The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.
Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.

Eyepieces and Magnification

Range of Zoom 3.5 – 70x magnification (using both eyepiece sets and bottom lens).

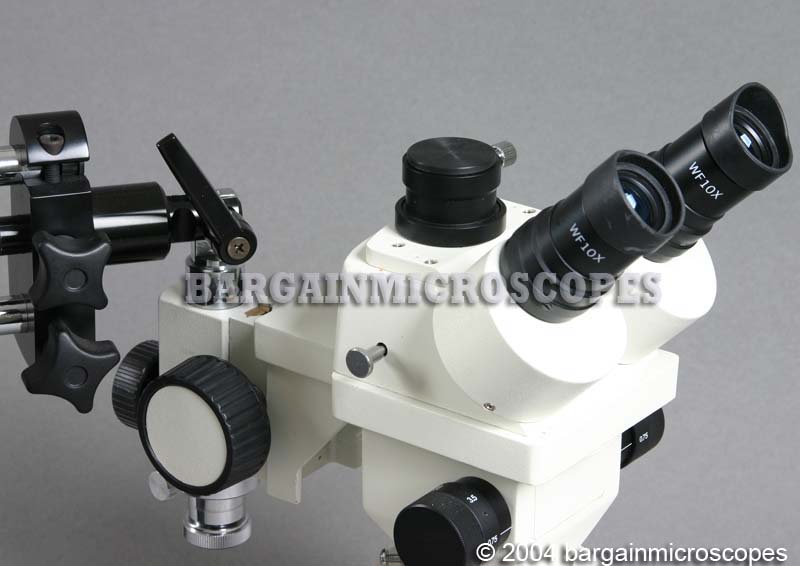

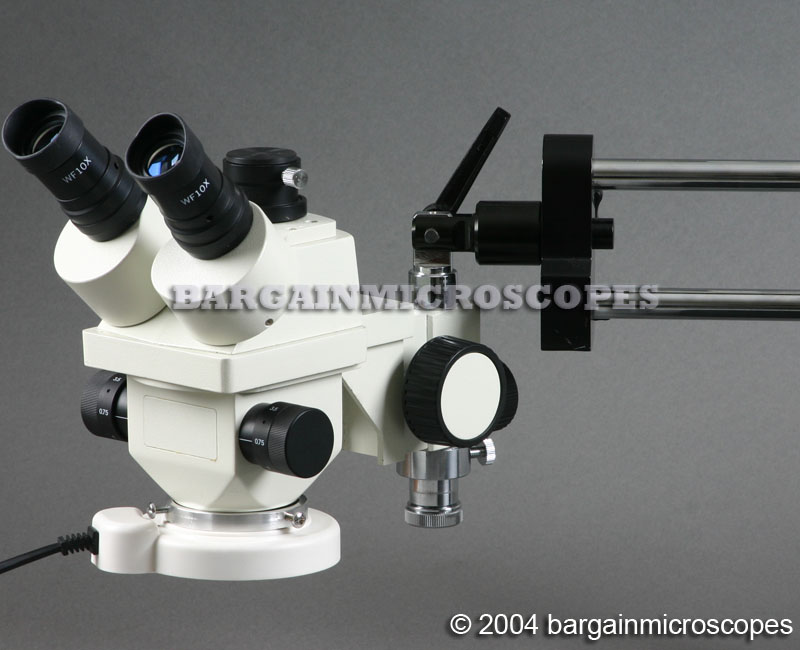

Including eyepieces: Wide-field 10x and Wide-field 20x.
Turning the zoom knob gradually increases or decreases magnification as needed and is much better than a fixed magnification style microscope.
A bottom 0.5x reduction lens is included. This is needed to increase the working distance of the scope so tools and hands have enough room for working.

Illumination

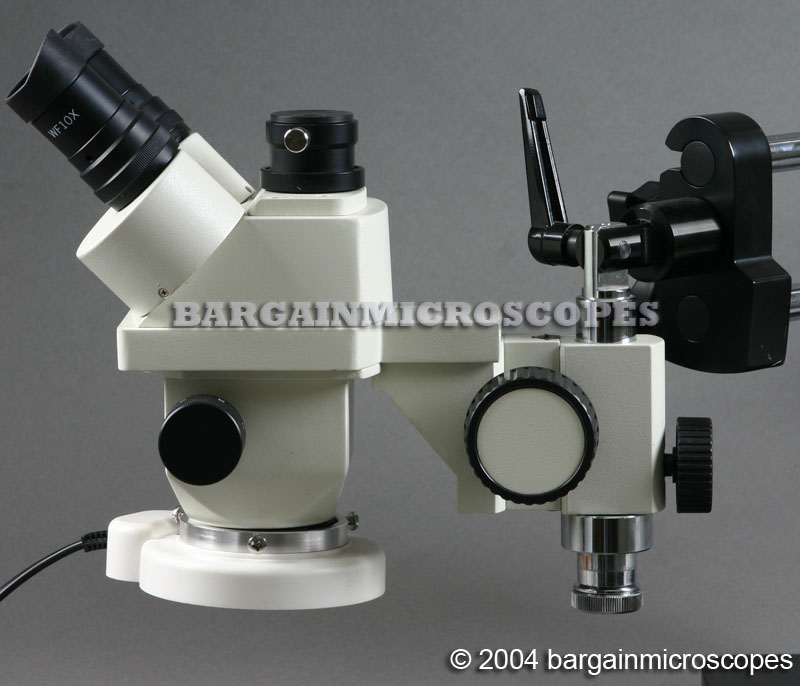

Head – Interpupillary Distance – Diopter

Focusing and Working Distance

Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Rack and Pinion Steel Gears for Focus Movement.
Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 85mm – w/o Bottom Lens on, (124mm w/ Bottom Lens on).

Frame – Base – Size – Weight

Included Items

Includes Rubber Eye Guards for Blocking Stray Light.
Includes Dust Cover.
Includes phototube with standard 23mm internal diameter for attaching standard microscope photography equipment.
Includes 1x c-mount for attaching standard ccd video camera equipment.

Other Information

Product Warranty

Warranty is 5 years on all microscope equipment.
The microscope warranty covers problems arising from normal usage.
We will repair or replace your defective microscopy equipment as needed during the warranty period.

Optional Items

Optional c-mount with reduction lens for mounting to the trinocular port and attaching the ccd camera. This only affects the ccd video camera and not other photography equipment. It will reduce the ccd camera magnified image through the microscope trinocular photography port.
