Boom Mounted - Dual Arm Microscopes
Call our Sales Hotline at
Email
Price: $ 794.99
Model: bm003bb20m
Shipping/Handling/Insurance: $ 64.98
|
|

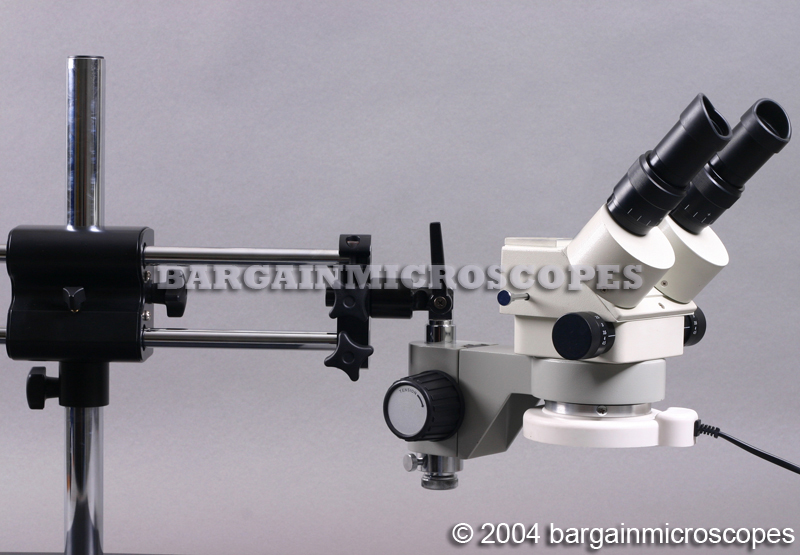

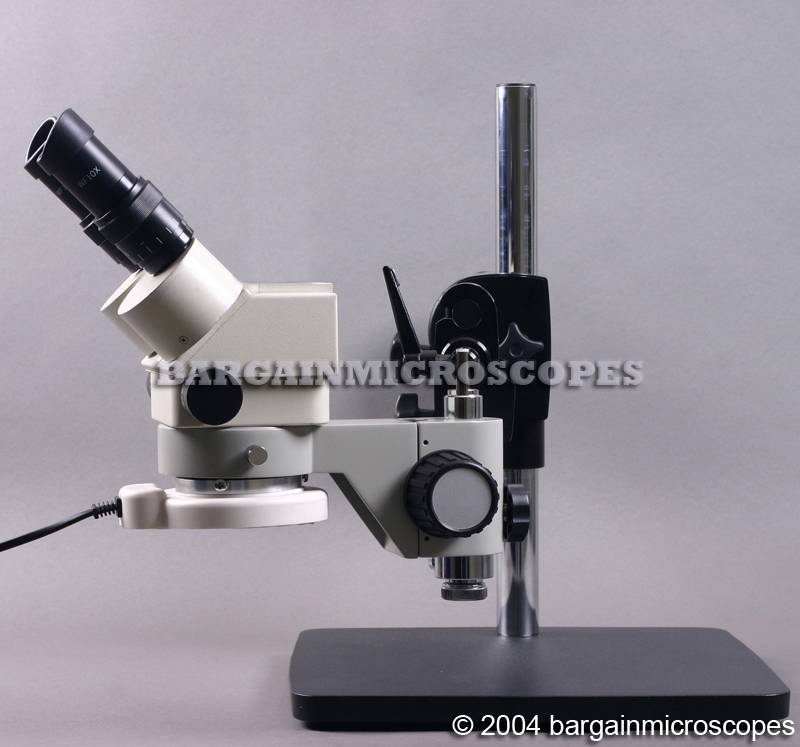

- Boom Stand Mounted Stereo Binocular Zoom Microscope!

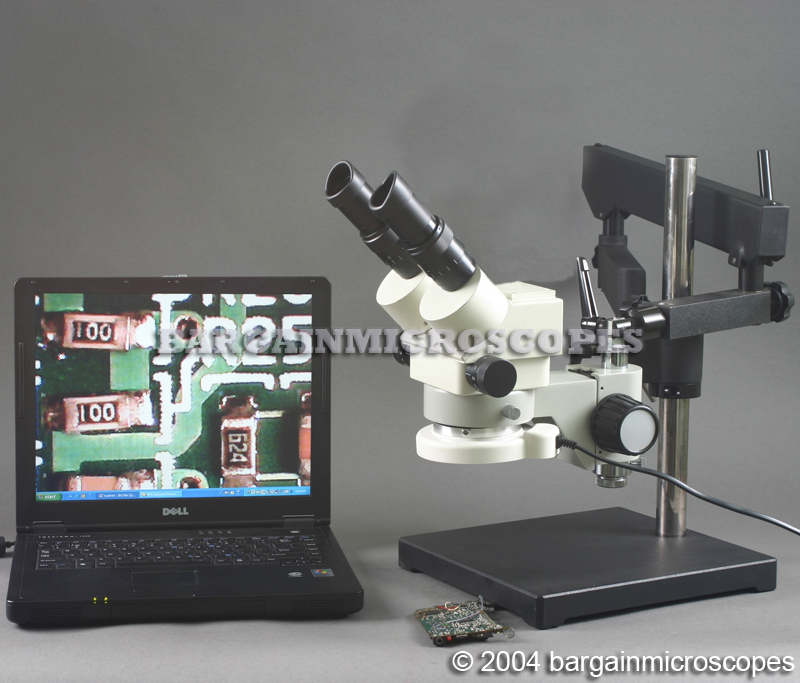

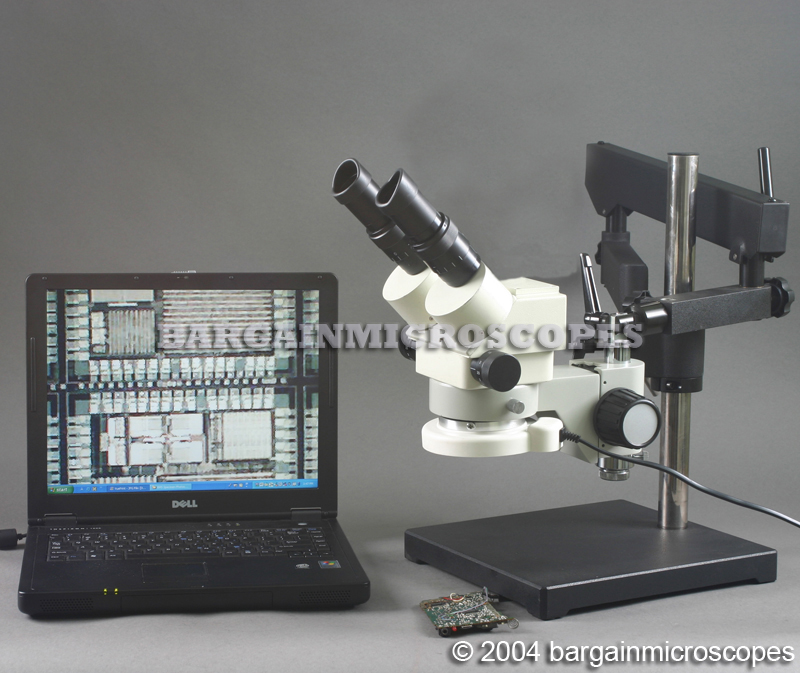

- Great for Repair of Small Items or for Circuit Board Repair and Rework!
- Bright and Clear 3-D Stereoscopic Images through High Quality Zoom Optics!
- Great Economical Price! Priced Hundreds Lower than Competition!
|
|
|
- Extra Large Glass in Eyepieces for Ease of Viewing and Less Eyestrain. The Glass Itself is 1 Inch Diameter! Other Models are Only 3/4 Inch Across!
- Before buying a different model, be sure to check their glass size. Most are much smaller than this.
- If you buy a cheap stereo scope, you may find you have to be so close your eyelashes touch the glass just to see inside.
|

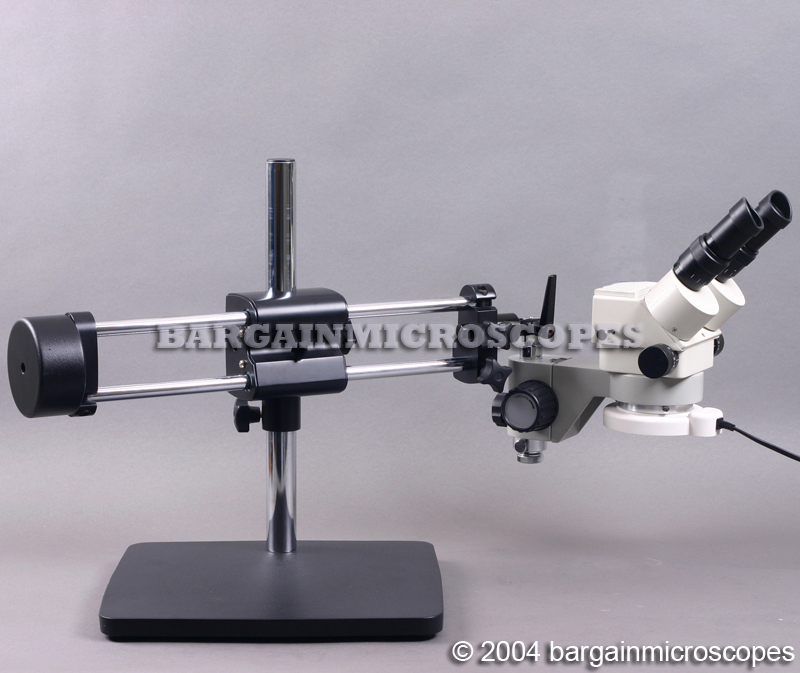

- Extra Sturdy Boom Stand for Maximum Versatility and Working Area!
- The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.

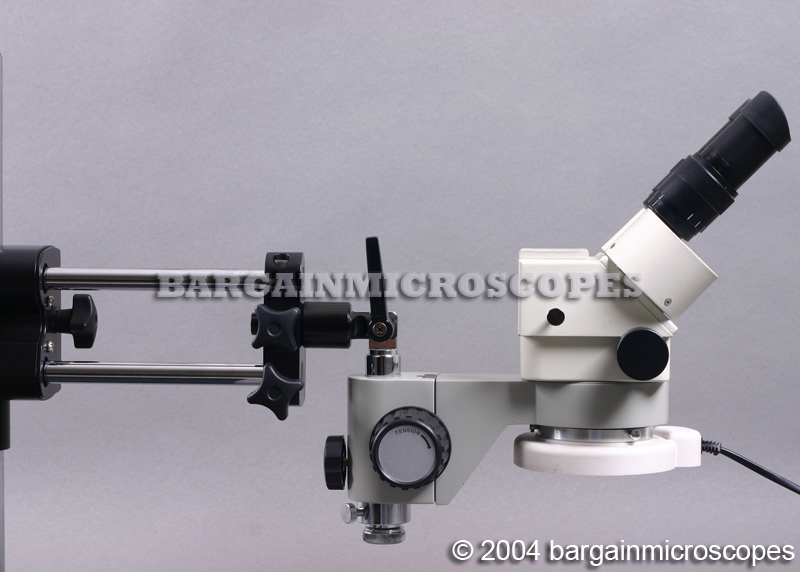

- Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.
|
| Eyepieces and Magnification |
- Zoom Range 3.5 – 90x Continuous Magnification (using both eyepiece sets and with and w/o bottom lens).
- Wide Field 10x and Wide Field 20x Eyepiece Sets Included.
- Includes 0.5x Bottom Lens. This lens decreases magnification and approximately doubles working distance. A greater working distance allows more room to get your hands and tools under the scope head.
|
- Includes Fluorescent Ring Light for Bright and Even Illumination.
- Spare ring fluorescent bulb is included.
|
| Head – Interpupillary Distance – Diopter |
- Binocular Microscope head on ergonomic 45 degree viewing angle with capablity to rotate head 360 degrees.
- The interpupilliary distance, distance between the microscope eye tubes, adjusts from 55 to 75mm to fit each user.
- Both ocular eyetubes have a diopter adjustment allowing for correction of vision through the microscope optics.
|
| Focusing and Working Distance |
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Rack and Pinion Steel Gears for Focus Movement.
- Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 92mm – w/o Bottom Lens on, (131mm w/ Bottom Lens on).
|
- Heavy Solidly Built Boom Stand.
- Solid Steel Boom Stand Base Plate.
- Shipping Weight of Boom Stand (no scope head) is 51 Lbs.
|
- Includes Rubber Eye Guards for Blocking Stray Light.
- Includes Dust Cover.
|
- Ships in Molded Styrofoam Container for protection.
- Manufactured under ISO: 9001 Standards.
- 110 VAC Power Requirement (Contact us about 220V availability).
- High Quality Solid Construction!
- Precision Made Glass Optics!
- Brand New, Never Used!
|
- Warranty is 5 years on all microscope equipment.
- The microscope warranty covers problems arising from normal usage.
- We will repair or replace your defective microscopy equipment as needed during the warranty period.
|
- Optional 150 Watt Ring Fiber Optic Illumination System.
- Optional Fiber Optic Polarizer and Analyzer. View your Specimens under Cross Polarization Conditions. Great Option for Enhancing Viewing of Surface Defects, Especially on Metallic or Shiny Surfaces.
|
