Boom Mounted - Dual Arm Microscopes
Call our Sales Hotline at
Email
Price: $ 1,399.99
Model: bm043tb20m
Shipping/Handling/Insurance: $ 64.98
|
|
Multi-function USB computer connected camera with NTSC TV video output is included. Laptop/Monitor are not included.
|
- Boom Stand Mounted Stereo Trinocular Zoom Microscope!
- Great for Repair of Small Items or for Circuit Board Repair and Rework!
- Bright and Clear 3-D Stereoscopic Images through High Quality Zoom Optics!
- Great Economical Price! Priced Hundreds Lower than Competition!
|
|
|
- Extra Large Glass in Eyepieces for Ease of Viewing and Less Eyestrain. The Glass Itself is 1 Inch Diameter! Other Models are Only 3/4 Inch Across!
- Before buying a different model, be sure to check their glass size. Most are much smaller than this.
- If you buy a cheap stereo scope, you may find you have to be so close your eyelashes touch the glass just to see inside.
|
| Video Port and Camera Details |

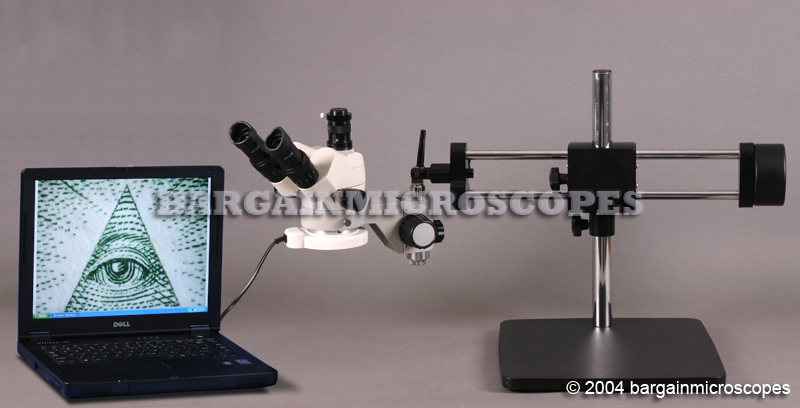

- Dual Usage Camera Included! Connect to both CCTV Monitor/TV or Computer!
- This is a unique two-in-one camera that allows both common microscope camera outputs. Normally, you need two separate cameras to get this functionality.

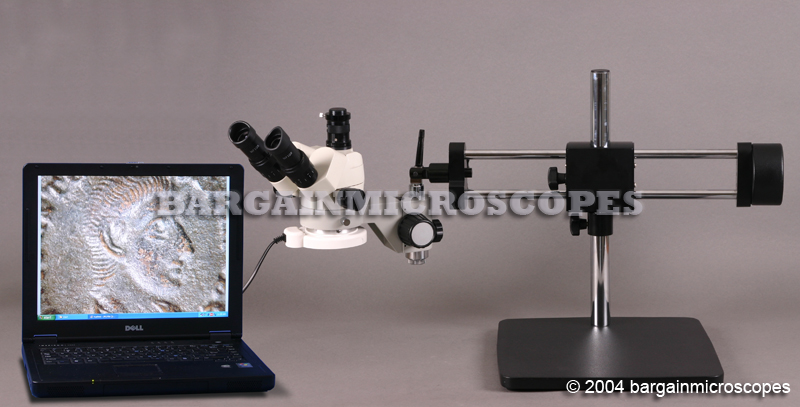

- Capture 720×576 pixel digital still and digital video via the USB input on your laptop computer.

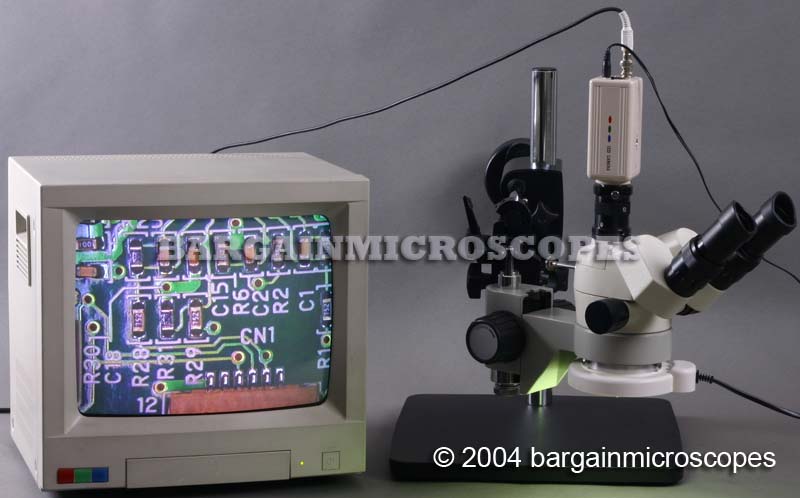

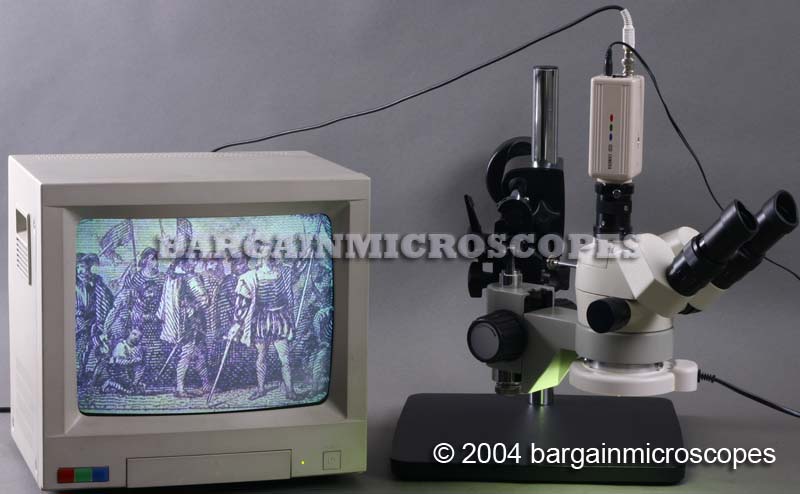

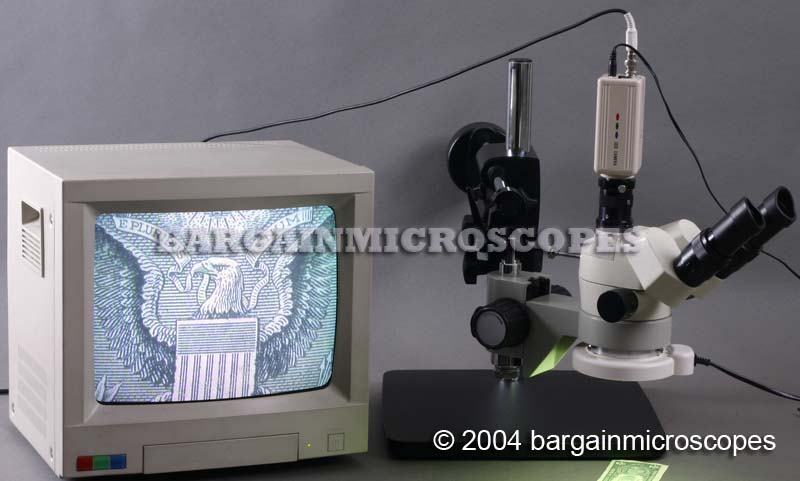

- Output live video to a CCTV monitor or normal Television using the NTSC composite video-out giving 420 TV lines and 370K pixels. PAL format available upon request.
- Microscope camera kit includes dual-usage camera, USB cable, Video cable with RCA jacks, autovolt power adapter, and Windows software.
|
- Measuring kit included as free bonus.
- Includes: Stage Micrometer with English and Metric marking lines for precise calibration of measuring reticle.
- Includes: Extra WF10x Eyepiece with Built-In Measuring Reticle, X-Scale, 10mm in 100 divisions.
- Use the stage micrometer to calculate the distances the eyepiece reticle represents at each magnification level.
|

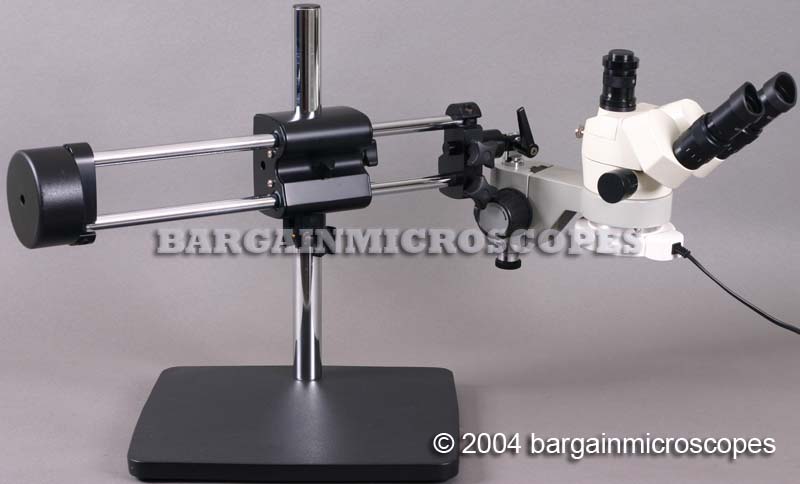

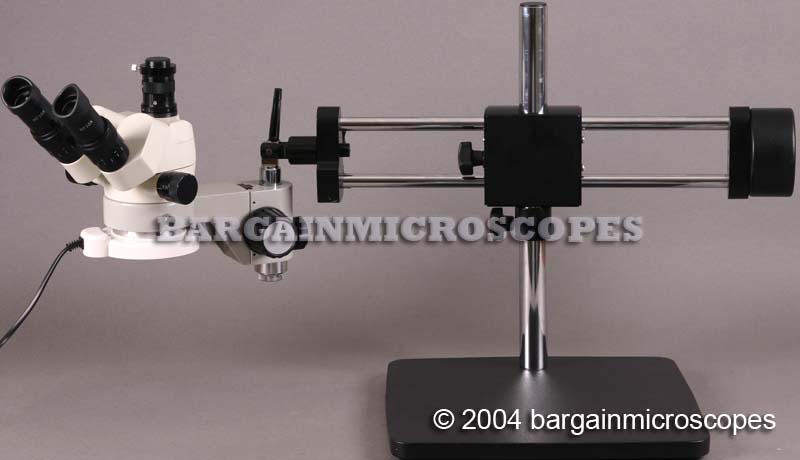

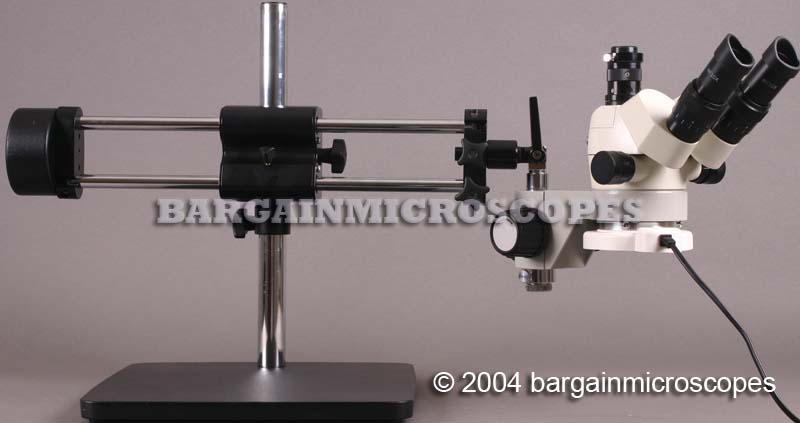

- Extra Sturdy Boom Stand for Maximum Versatility and Working Area!

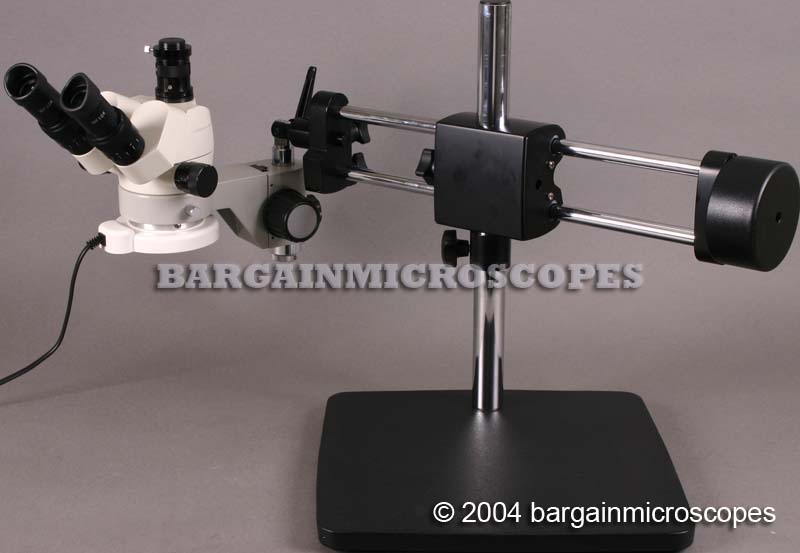

- The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.
- Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.
|
| Eyepieces and Magnification |
- Range of Zooming 3 – 120x magnification (using both eyepiece sets and bottom Barlow lens).
- Excellent High Ratio Zoom Range (Without Changing Eyepieces or adding bottom lens): 6.5x – 60x Continuous Magnification, With Included 30mm Wide Field 10x Eyepieces.
- Changing to 20x eyepieces gives up to 120x Magnification!
- A bottom 0.5x reduction Barlow lens is included. This is needed to increase the working distance of the scope so tools and hands have enough room for working.
|

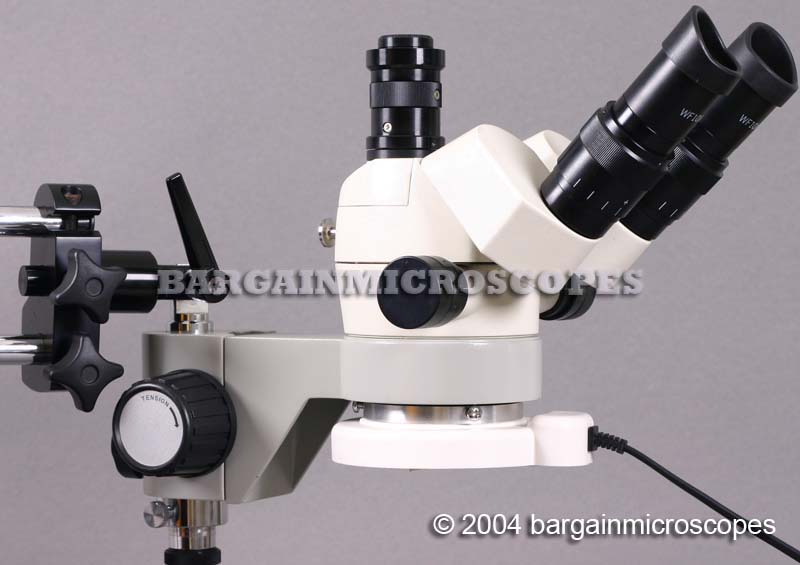

- Includes Fluorescent Ring Light for Bright and Even Illumination.
- Spare ring fluorescent bulb is included.
|
| Head – Interpupillary Distance – Diopter |

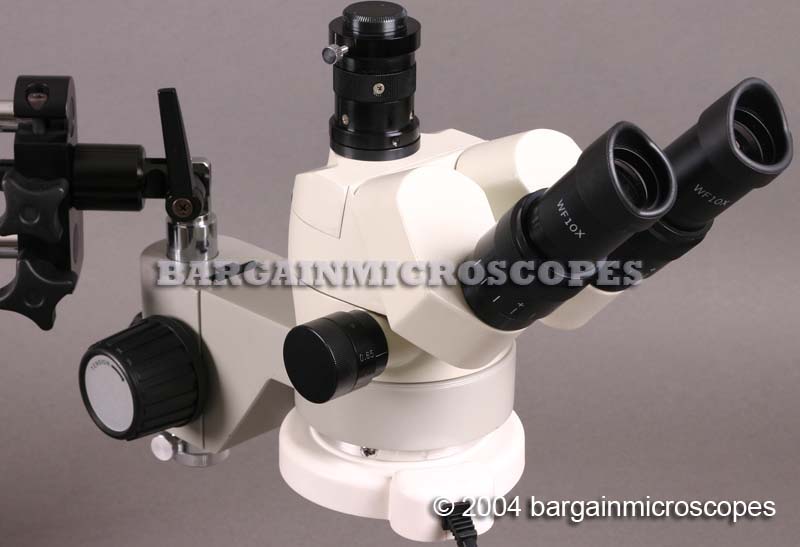

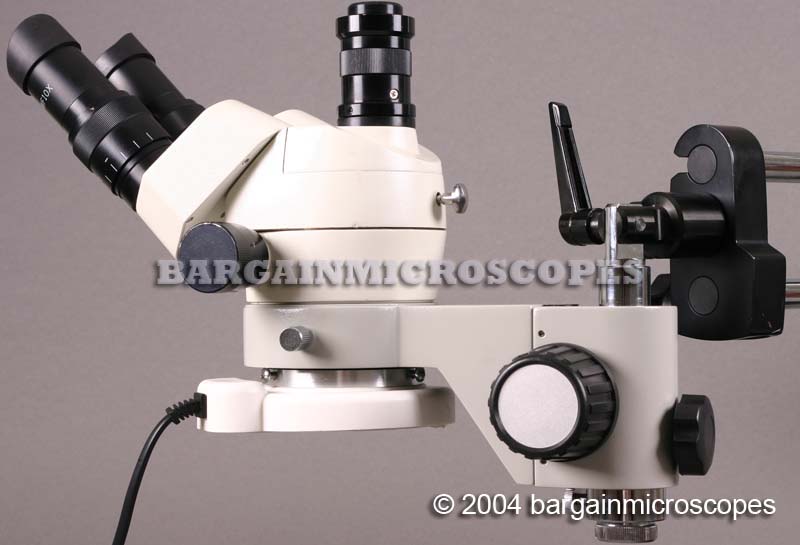

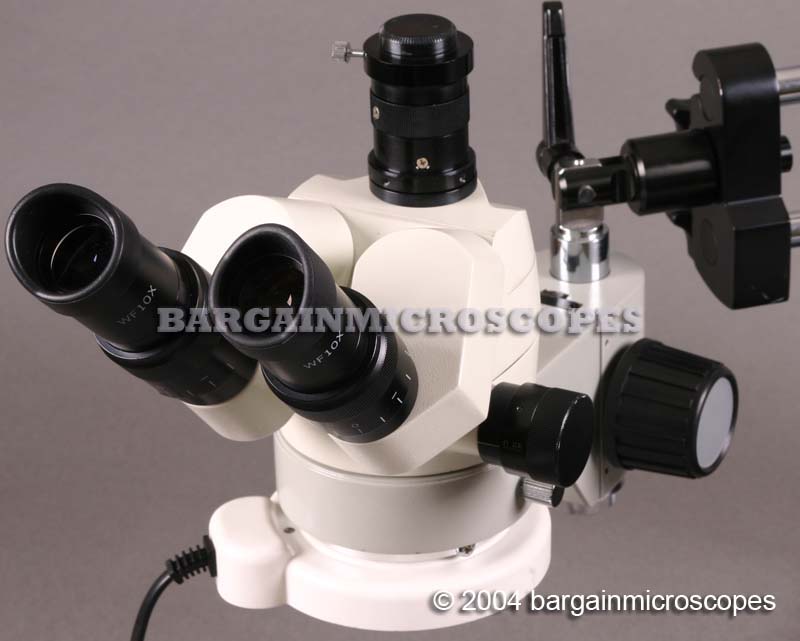

- 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
- Adjusts to the Distance Between your Eyes: 55 to 70mm InterPupillary Distance.
- Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
|
| Focusing and Working Distance |
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Rack and Pinion Steel Gears for Focus Movement.
- Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 100mm – w/o Bottom Lens on, (124mm w/ Bottom Lens on).
|
| Frame – Base – Size – Weight |
- Heavy Solidly Built Boom Stand.
- Solid Steel Boom Stand Base Plate.
- Shipping Weight of Boom Stand (no scope head) is 51 Lbs.
|
- Includes Rubber Eye Guards for Blocking Stray Light.
- Includes Dust Cover.
- Includes phototube with standard 23mm internal diameter for attaching standard microscope photography equipment.
- Includes 1x c-mount for attaching standard ccd video camera equipment.
|
- Ships in Molded Styrofoam Container for protection.
- Manufactured under ISO: 9001 Standards.
- 110 VAC Power Requirement (Contact us about 220V availability).
- High Quality Solid Construction!
- Precision Made Glass Optics!
- Brand New, Never Used!
|
- Warranty is 5 years on all microscope equipment.
- The microscope warranty covers problems arising from normal usage.
- We will repair or replace your defective microscopy equipment as needed during the warranty period.
|
- Optional Ring Fiber Optic Illumination System, 150 Watt Halogen, Variable Intensity.
- Optional polarizing system to fit to optional ring fiber optic unit. For shiny surfaces, polarization is often used in microscopy to enhance imaging of surface features and defects. The best polarizers have two polarized filters in the light path and can be rotated at angles, with 90 degrees often giving optimal results under cross polarized light.
- Optional c-mount with reduction lens for mounting to the trinocular port and attaching the ccd camera. This only affects the ccd video camera and not other photography equipment. It will reduce the ccd camera magnified image through the microscope trinocular photography port.
|
