Boom-Dual

Boom Mounted - Dual Arm Microscopes

Call our Sales Hotline at

Price: $ 1,279.99
Model: bm003tb2am
Shipping/Handling/Insurance: $ 69.98

Multi-function USB computer connected camera with NTSC TV video output is included. Laptop/Monitor are not included.

Product Overview //

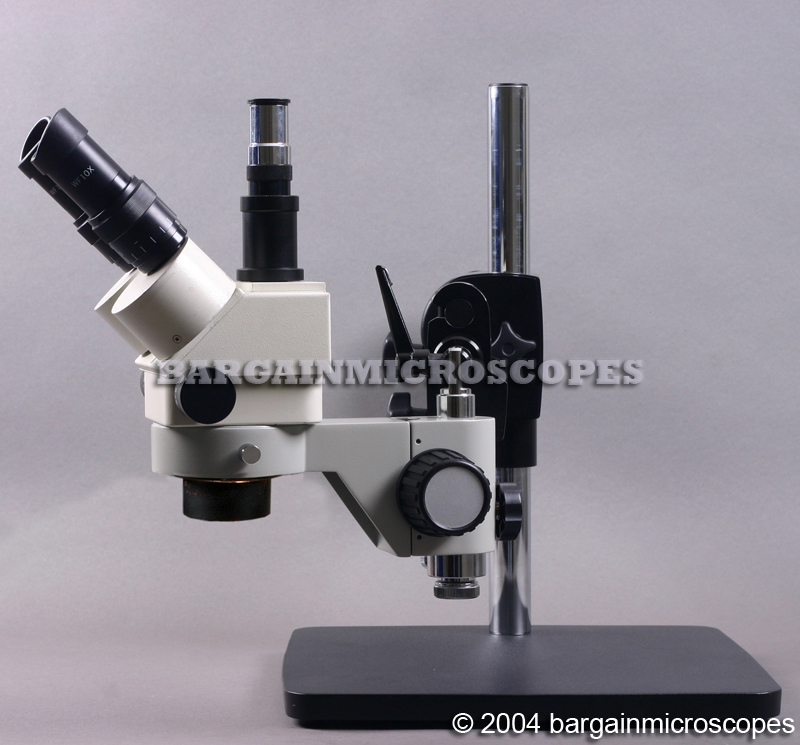

Heavy double arm microscope stand for sturdy mounting of stereoscopic microscope head.

USB Camera Included. Laptop not included.
(Camera Model Slightly Different in Photo)

CCD video live motion color camera with mounting adapter included.
CCTV monitor not included.

Photography images taken with handheld camera, different than what is included.

Circuit Board
Photo Thru 10x Eyepiece
15x Zoom Magnification
Excellent Quality!

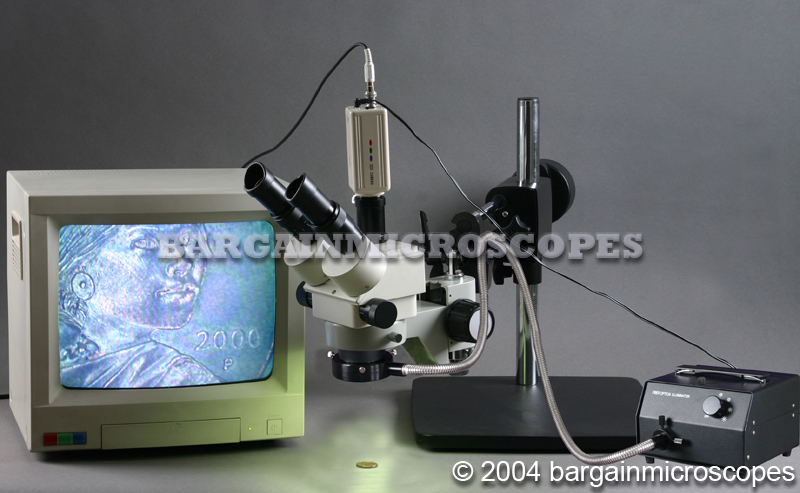

$1 Sacagawea Coin
Photo Thru 10x Eyepiece
30x Total Magnification
Lowest Price Anywhere!

Spider in Amber
Photo Thru 10x Eyepiece
45x Total Magnification

Semiconductor Wafer
Photo Thru 10x Eyepiece
15x Total Magnification
Clear Optics!

Special Features

High intensity illumination with complete ring fiber optic light system. This 150W variable intensity microscope illumination system enhances overall viewing of specimens. It is a great benefit for use with video microscopy and digital microscope photography.

Camera Equipment Included

Dual Usage Camera Included! Connect to both CCTV Monitor/TV or Computer!
This is a unique two-in-one camera that allows both common microscope camera outputs. Normally, you need two separate cameras to get this functionality.

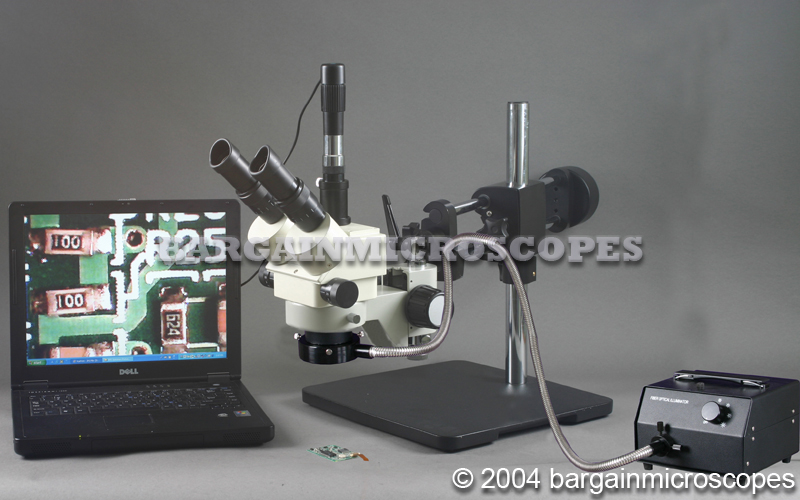

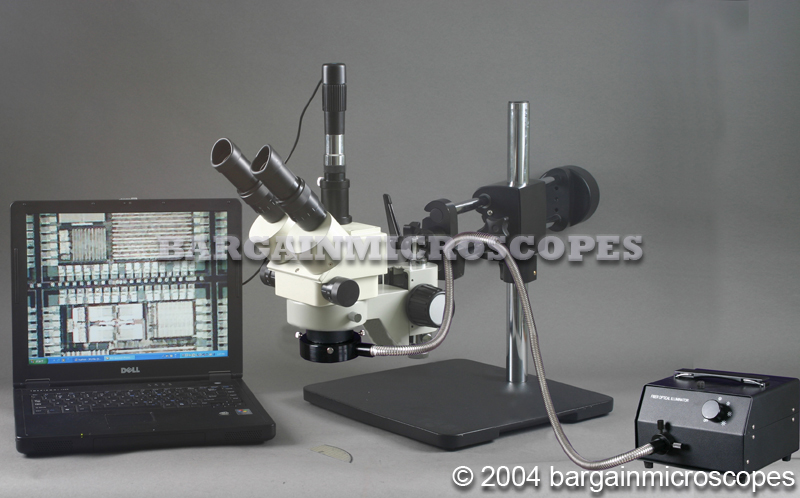

Capture 720×576 pixel digital still and digital video via the USB input on your laptop computer.

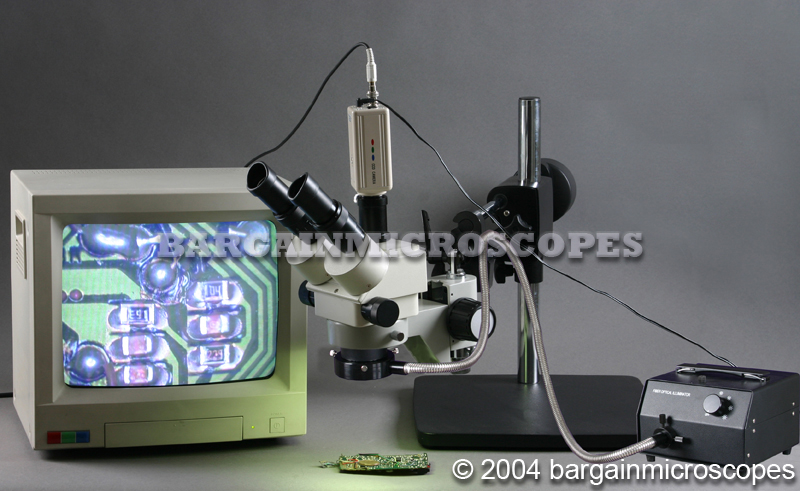

Output live video to a CCTV monitor or normal Television using the NTSC composite video-out giving 420 TV lines and 370K pixels. PAL format available upon request.
Microscope camera kit includes dual-usage camera, USB cable, Video cable with RCA jacks, autovolt power adapter, and Windows software.

Boom Stand Details

Extra Sturdy Boom Stand for Maximum Versatility and Working Area!

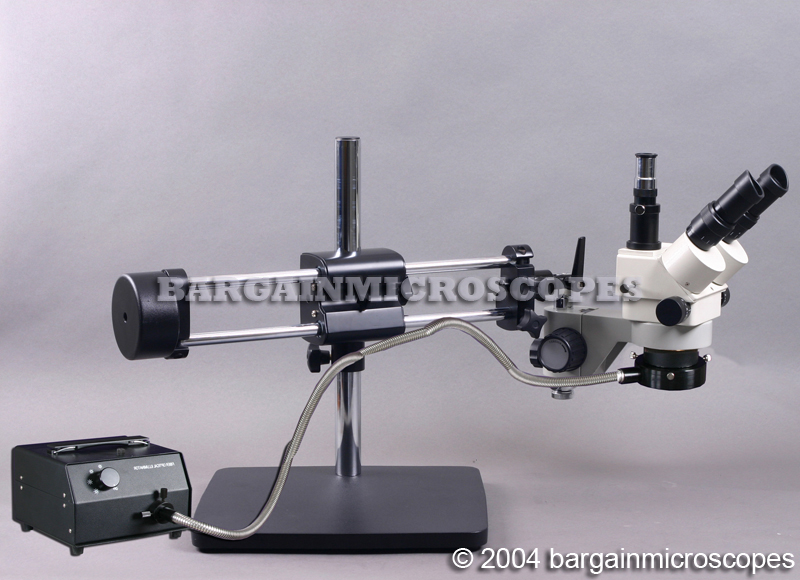

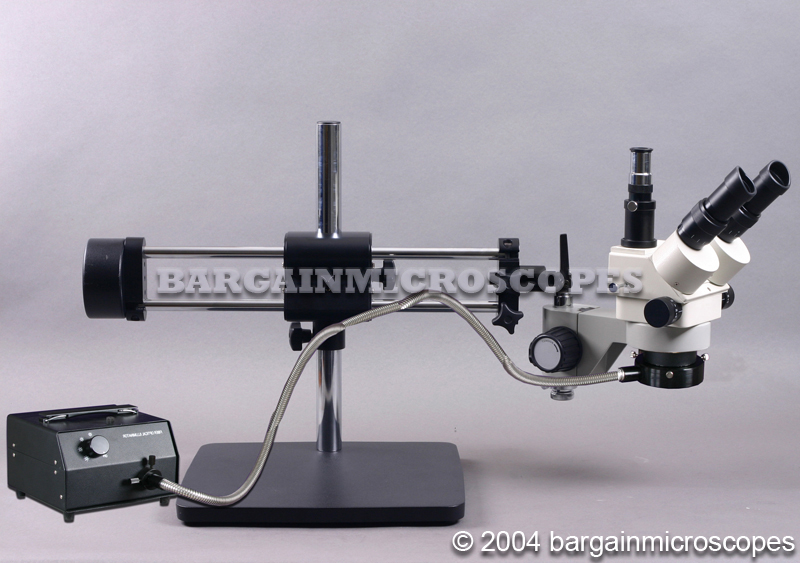

The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.

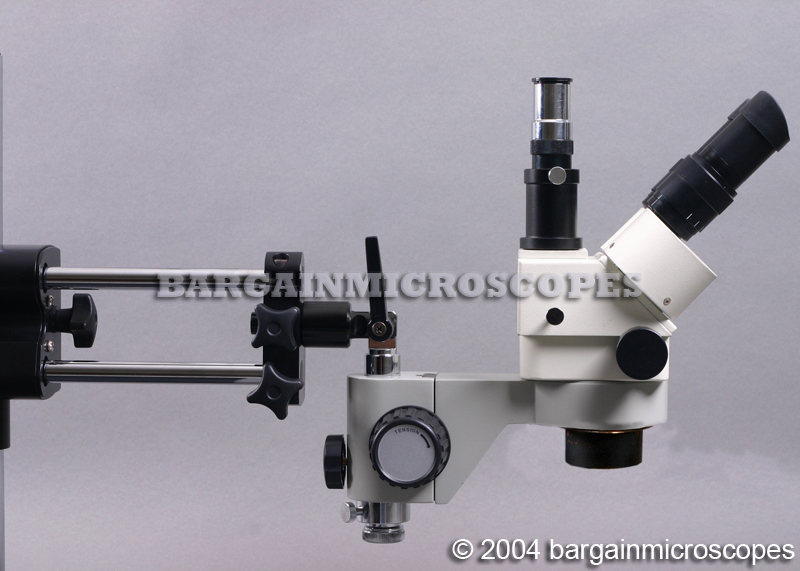

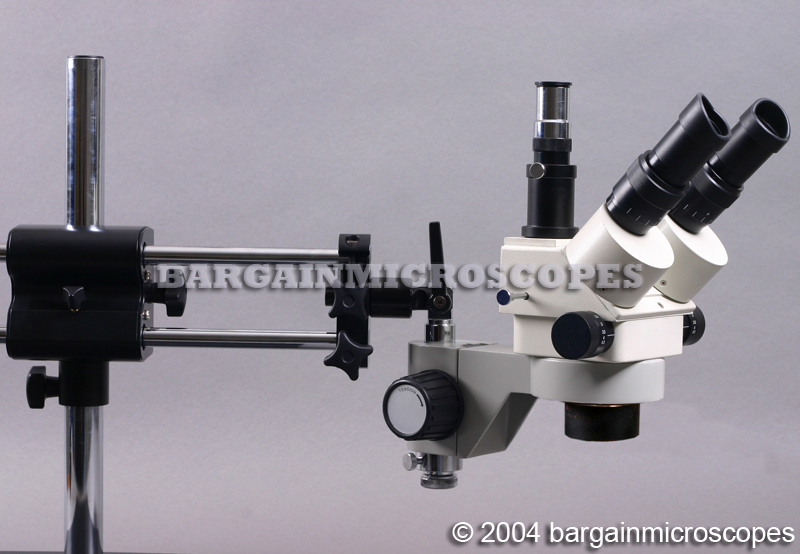

Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.

Magnification and Eyepieces

Zoom Range 3.5 – 90x Continuous Magnification (using both eyepiece sets and with and w/o bottom lens).
Wide Field 10x and Wide Field 20x Eyepiece Sets Included.
Includes 0.5x Bottom Lens. This lens decreases magnification and approximately doubles working distance. A greater working distance allows more room to get your hands and tools under the scope head.

Head – Interpupillary Distance – Diopter

Focusing and Working Distance

Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Rack and Pinion Steel Gears for Focus Movement.
Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 92mm – w/o Bottom Lens on, (131mm w/ Bottom Lens on).

Frame – Base – Size – Weight

Included Items

Includes Rubber Eye Guards for Blocking Stray Light.
Includes Dust Cover.
Includes phototube with standard 23mm internal diameter for attaching standard microscope photography equipment.
Includes 1x c-mount for attaching standard ccd video camera equipment.

Other Specifications

Manufacturer\’s Warranty

Warranty is 5 years on all microscope equipment.
The microscope warranty covers problems arising from normal usage.
We will repair or replace your defective microscopy equipment as needed during the warranty period.

Optional Items

Optional c-mount with reduction lens for mounting to the trinocular port and attaching the ccd camera. This only affects the ccd video camera and not other photography equipment. It will reduce the ccd camera magnified image through the microscope trinocular photography port.
