Description:

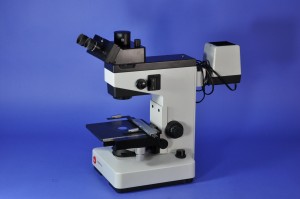

• This is a unique style of microscope.  It is designed to resemble and operate like an upright microscope, however, it is really an inverted.  The objectives are facing up and the unit can be used for viewing live culture specimens in the bottom of a petri dish.  It can also be used to view biological specimens on common slides, just by turning them upside down.

Photography Port:

• Includes a trinocular photography port on the top of the head for attaching digital USB and other types of microphotography devices.

 Phase Contrast Microscopy:

• Includes a slider with three openings. One opening should be left blank for brightfield.  The other opening currently has nothing in it but could use another phase contrast annulus.  One opening has a phase annulus for phase “1a, S95”.

Objectives:

• Does not include any objectives.

Illumination:

• Rear mounted lamp housing. Marked Type 307-150.001.12V max 100W.Leitz #514725.
• Missing the external power supply box for the lamp.  These power supplies can be found. Just search for one giving a 12V output and 100W or higher power rating.  Also, match up the plug adapter. This one uses the standard two round prongs.

General Notes:

• Frame is marked: Type 090-127-017. Leica Mikroskopie&Systeme GmbH Wetzler.
• Made in Germany.
• 5-Place Quintuple Nosepiece. Smooth turning operation with positive click-stops.
• Eyepiece Pair: LeitzWetzlar Germany #519750. PeriPlan 10x/18 M. High eyepoint (okay to wear eyeglasses during operating).

Condition:

• This is a used microscope and sold in as-is condition.
