| Video Port and Camera Details |
- High Resolution 3.1 MegaPixel Digital Camera System.
- Complete Digital Microscopy Solution Included.
- Capture high resolution digital microscope images, 2048×1536 pixels.
- View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
- Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
- Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
- Includes measuring capability with the software.
|
- BONUS: Includes a Carrying Case with Precut Foam for safe transportation of your precision instrument.
|
| Eyepieces and Magnification |
- Brightfield and Darkfield Magnifications Through Eyepieces: 40x, 100x, 200x, 400x, 500x, and 1000x.
- Phase Contrast Magnifications through Eyepieces: 100x, 200x, 400x, and 1000x.
- Eyepiece Set Included: Wide Field 10x.
- Five PLAN DIN Brightfield Objectives: 4x, 10x, 20x, 40x, 50x (Oil), 100x (Oil Immersion). The 50x and 100x are used for darkfield analysis and brightfield. They have a special darkfield iris.
- Four Plan DIN Phase Contrast Objectives: 10x, 20x, 40x, 100x (Oil Immersion).
- All objectives are Plan versions for higher quality and flat field of view without distortion.
|
- Darkfield Illumination: High Power 350W Xenon variable intensity external fiber optic illumination system.
- Brightfield and Phase Contrast Illumination: High Power 50W Halogen Variable Intensity Transmitted Light in External Housing.
- Includes Koehler Illumination Focusable Field Diaphragm for Brightfield and Phase Contrast Microscopy.
|

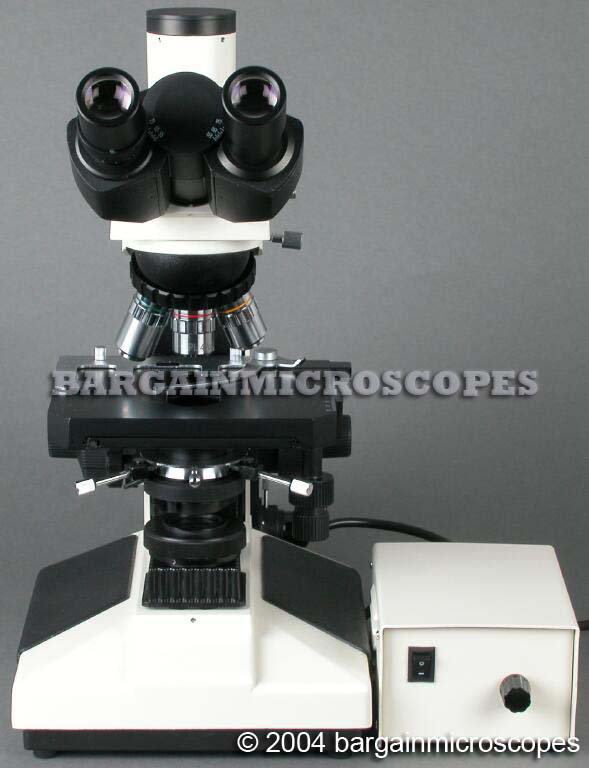

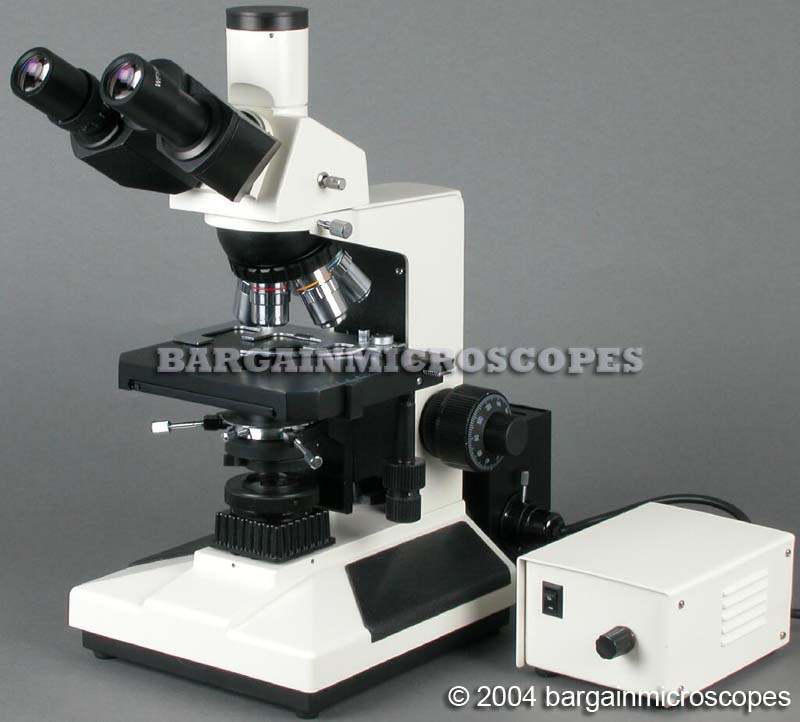

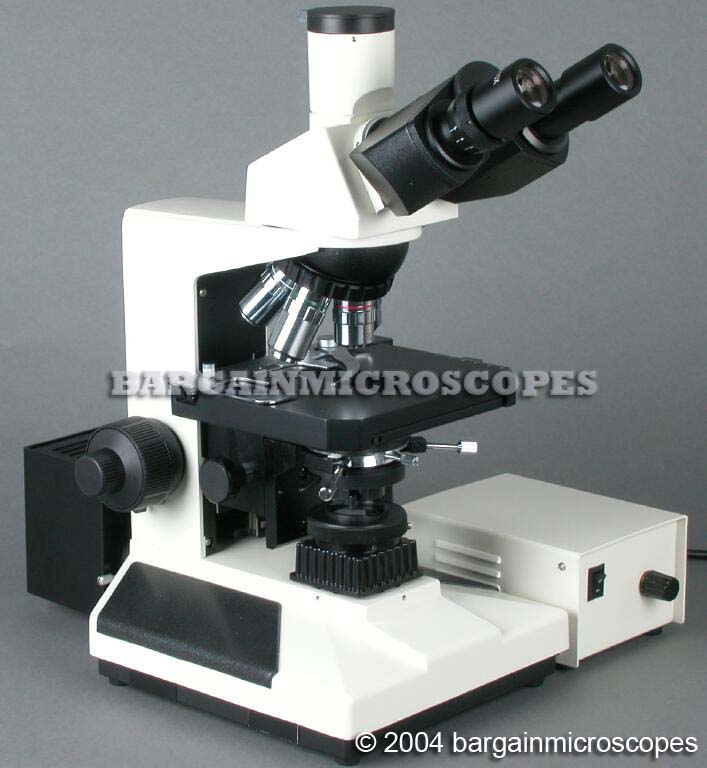

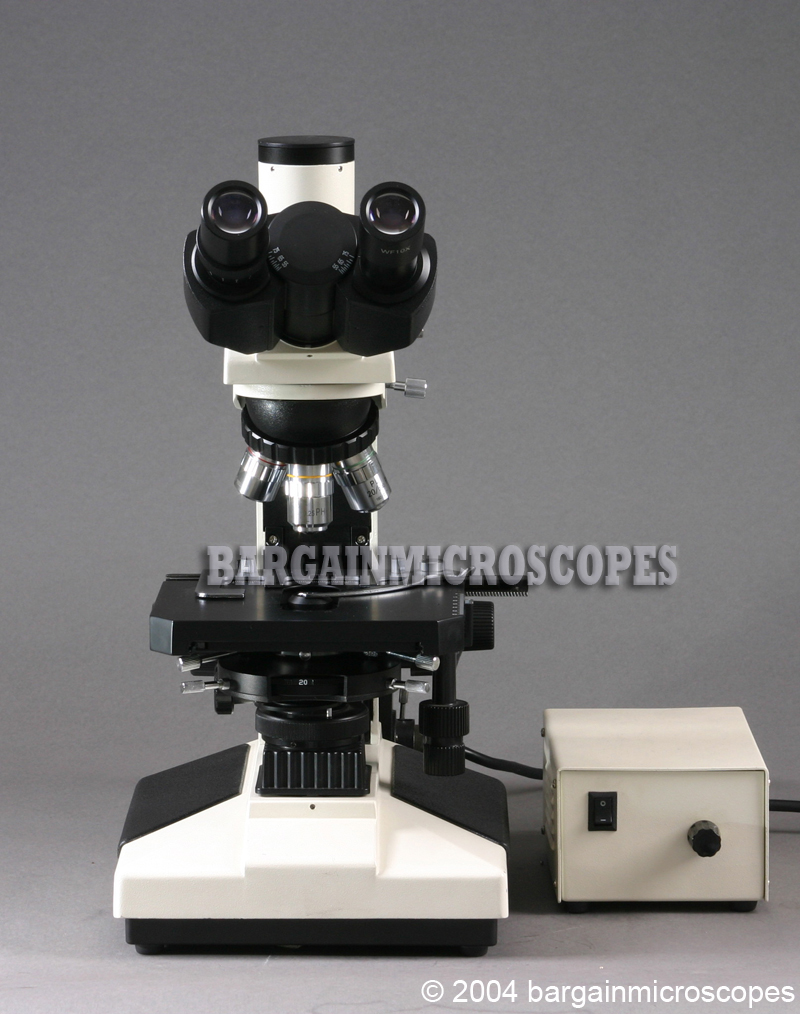

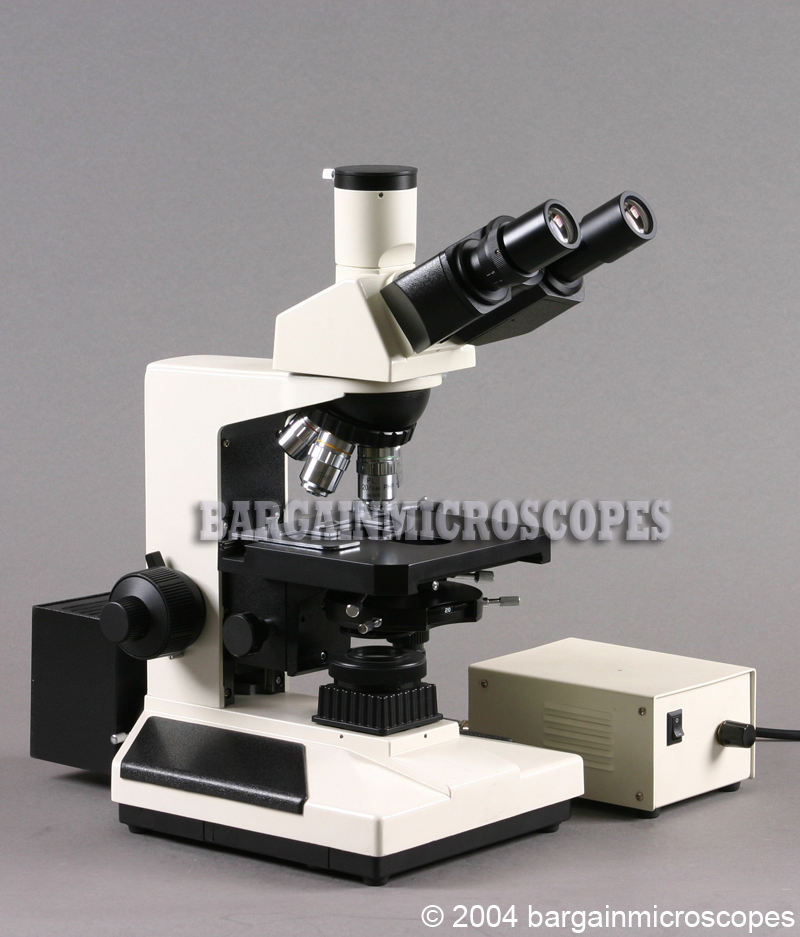

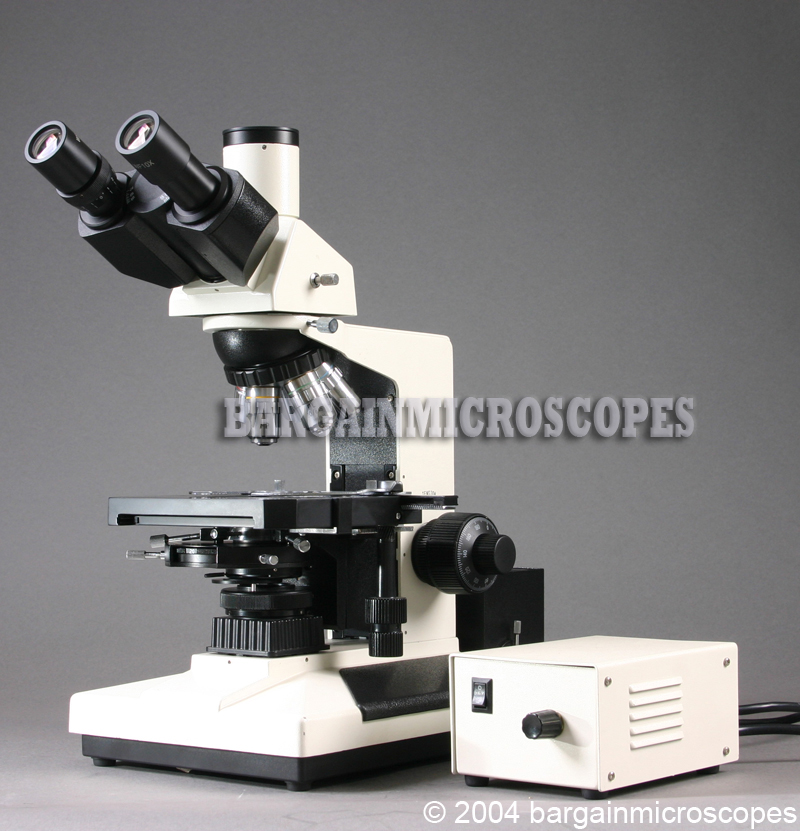

- 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
- Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
- Diopter Adjustment to Correct for Your Specific Vision Needs.
|
| Condenser – Iris – Filters |
- Dedicated Darkfield Oil Condenser Included (N.A. 1.36 – 1.25), with centering knobs.
- Brightfield microscopy condenser Included (1.25 N.A. Abbe Substage, Iris Diaphragm and Swing-Out Filter Holder).
- Brightfield microscopy filters: Blue and Frosted White.
- Phase Turret Condenser with Phase Annulus Rings. Centering Knobs for each ring. Includes Phase Telescope for Viewing Alignment of Phase Annulus Rings.
- Rack and Pinion Condenser Movement System and Condenser Alignment Screws.
|
- Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 140 x 160mm..
- Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 75mm (X-Direction – Slide Movement) x 48mm (Y-Direction – Stage Movement).
- Stage moves Forward/Backward, which is a better feature than a simple slide mover as most scopes have.
|
- Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
- Coarse Adjustment Travel Range: 30mm. (Stage Movement Distance Up/Down).
- Fine Adjustment Division: 0.002mm.
- Coarse Focusing Tension Adjustment and Range Limit Adjustment Knobs.
|
| Frame – Base – Size – Weight |
- Total Overall Height of Microscope: 401mm
- Microscope Weight: 18 lbs. Weight of external fiber optic illuminator 12 Lbs. The fiber optic illuminator ships in separate box from the microscope system.
|
- Includes dust cover, immersion oil, and fuse.
- Includes phototube (standard 23mm ID) for attaching various microphotography equipment.
- Includes rubber eyeguards for blocking out stray ambient light from the room when doing darkfield microscopy.
|
- Manufactured under ISO: 9001 Standards.
- 110 VAC Power Requirement (Contact us about 220V availability).
- High Quality Solid Construction!
- Precision Made Glass Optics!
- Brand New, Never Used!
|
- Warranty is 5 years on all microscope equipment.
- The microscope warranty covers problems arising from normal usage.
- We will repair or replace your defective microscopy equipment as needed during the warranty period.
|
- Optional special black and white darkfield camera with ultra light sensitivity. Single USB camera takes high resolution digital still images and does full motion live video on computer screen.
|
